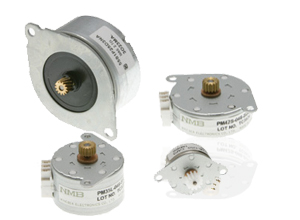

PM stepping motors


These motors rotate at fixed angles by digitally controlled electronic pulses and are used in the paper-feeding devices of printers, copy machines, facsimiles and similar equipment. PM stepping motor uses a permanent magnet (PM) as a rotor.

Features

Internal Sourcing of All Parts

Most of parts used in these motors - from shaft and hub, stator and magnet - other than winding and lead wires are produced in-house, giving Minebea unmatched advantage in terms of quality, supply capabilities, manufacturing cost and speed of delivery.

Integral molding of a stator reduces assembly processes, thereby making automatic assembly possible. This has contributed to high quality, high performance and improved productivity.
A plant in Thailand uses Minebea's fully integrated manufacturing system, whereby all processes from machining components to final assembly are conducted in-house.

Product Data

Item Contents
Development
Manufacturing
Main User Personal computer and peripherals manufacturers , Office automation equipment manufacturers , Automobile manufacturers , Housing related equipment manufacturers
Market Share Approximately 20% (Minebea estimate)
Commenced Operation in 1986

Application

♦
Personal Computers (Desk top type/Note book type)
♦
Printers
♦
Copy machines
♦
Automotive components
♦
Facsimile machines
♦
Cameras
