New Magnetic Encoder Option Added to MinebeaMitsumi's Hybrid Stepping Motors
MinebeaMitsumi Inc. (Head Office: Nagano Prefecture, Representative Director, Chairman CEO: Yoshihisa Kainuma; hereinafter "MinebeaMitsumi") hereby announces the addition of the "N Series" and "K Series" magnetic encoders as new angle-detection options for its hybrid stepping motors.
The defining feature of these newly added magnetic encoder options is their ability to deliver high-precision detection via 3-channel output, combined with flexible resolution settings tailored to specific customer applications.
This product allows the resolution to be configured to any value within the range of 1 to 4,000 cpr. Because the resolution can be optimized to match the required positioning accuracy and mechanism of the equipment, it enables more precise and highly accurate motor control. Furthermore, it supports A/B/Z-phase output (3 channels), ensuring accurate detection of rotational direction and speed across a wide range of motor sizes. In applications demanding high-precision angle detection and rotation data, this product provides the ideal solution to address our customers' challenges.
The primary difference between the "N Series" and "K Series" lies in the presence of a "1-turn battery-less absolute function," which stores position data within a single rotation. The "K Series" can read the current position within one full rotation even after the power is shut off. For example, inversion machines used for label application typically operate within a single rotation; this function ensures the position is constantly tracked across the entire range of motion. As a result, there is no need for a homing operation when turning the power back on, contributing to a significant reduction in tact time.

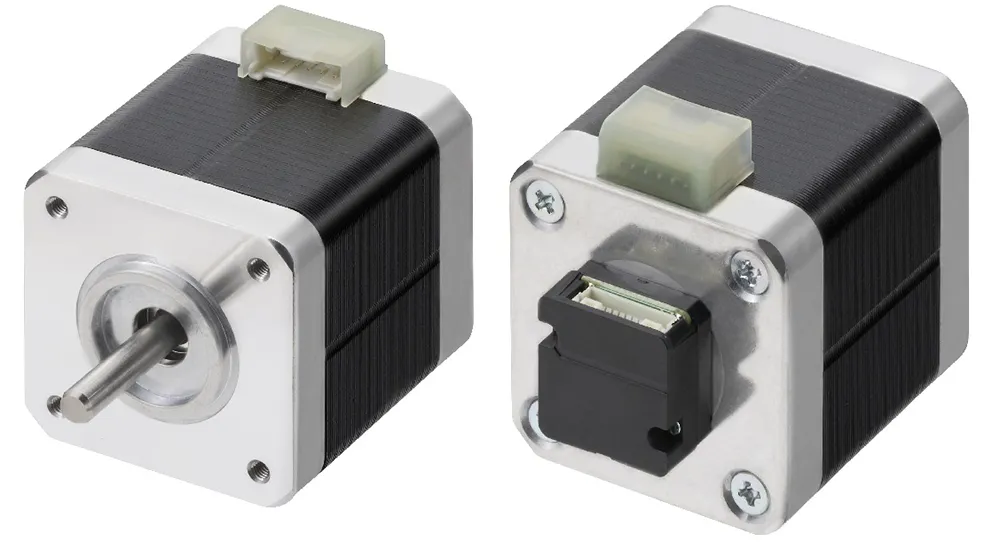

Product Photo
Product Specifications
| Model | N series | K series |
|---|---|---|
| Size | □20, 25, 28, 35, 42, 56 mm | |
| Resolution | 1-4,000 cpr *default 4,000 cpr | |
| Output specification | Incremental | |
| Output signal | 3ch (phase A/B/Z) | |
| Interface | Differential line driver | |
| Output level | RS485 | |
| Absolute function | - | Capable of one-revolution detection |
| Application examples | Ideal for applications requiring high-precision angle detection, origin signal, and rotation speed information. Surveillance cameras (pan/tilt), fundus examination equipment (pedestals), laser irradiation heads, specimen rotary tables, ball screw transport, and label inversion machines (K series), etc. | |
Production Plan
| Mass Production Start Date | : Currently in mass production |
|---|---|
| Production Location | : Thailand |
About MinebeaMitsumi's Hybrid Stepping Motors
Our hybrid stepping motors are a hybrid type featuring permanent magnets embedded within a rotor made of laminated silicon steel sheets. By incorporating our in-house manufactured miniature and small-diameter ball bearings, we have achieved even higher precision. Our products have a proven track record across a wide range of applications requiring high reliability, from office automation (OA) equipment such as printers, copiers, and multifunction printers, to industrial machinery including medical devices, semiconductor manufacturing equipment, factory automation (FA) equipment, and robotics.
About MinebeaMitsumi
MinebeaMitsumi is an INTEGRATED* precision components manufacturer. The company specializes in ultra-precision technologies, ranging from core products such as miniature and small-diameter ball bearings—which ensure smooth machine rotation—to protection ICs for single-cell lithium-ion batteries. The company's diverse portfolio includes motors, sensors, and semiconductors. While often unseen, MinebeaMitsumi's ultra-precision technologies support daily life across a wide array of fields, including home appliances (air conditioners, vacuum cleaners, and hair dryers), gaming consoles, IT devices like smartphones and PCs, as well as automotive, aerospace, and medical equipment.
* This term was adopted with the intended meaning "to be combined" rather than "to sum up".
Create new value through synergy by combining all the resources of our group.
