July 15, 2015
Minebea Co., Ltd.
Minebea to Start Mass Production and Sales of New LED Lighting
(Smart Adjustable Light for IoT (SALIOT))
Minebea Co., Ltd. ("Minebea"), through the application of its ultra-thin optical guide plate technologies, manufactures 35 million units of LED backlights for smartphones on a monthly basis. By way of applying technologies for light guiding panels and plastic injection molding that have been cultivated through the production of LED backlights, Minebea has developed the industry's first LED lighting capable of automatically adjusting a light distribution angle, named Smart Adjustable Light for IoT ("SALIOT"), and has commenced mass production and sales of SALIOTs.
"SALIOT" is a new product, which not only can adjust the direction of the light and light distribution angles ranging from 10° to 30° through controlling the distance between the light emitting diode and the lens by motor, but also can manage and control a light distribution angle and brightness both horizontally and vertically with ease by smartphone or tablet through the development and implementation of software applying wireless technologies on a proprietary basis.
"SALIOTs" are intended to be used in the commercial complex such as the large-scale shopping centers with high ceilings in particular, show rooms for car dealers, museums of various kinds, art museums, educational facilities, event spaces, hotels, and other wide variety of places, where our product can provide multiple light sources from one single illumination.
Up to this point, the adjustment of large-sized illumination installed in the high ceiling has been performed manually with a stepladder or an adjusting rod, which is dangerous and troublesome at times. "SALIOT" is capable of controlling the direction of light and light distribution angles for up to 100 units of lighting devices simultaneously, thereby providing appropriate solutions to a wide array of customers including facility owners, contractors, designers, etc.
Minebea, while focusing on the development of EMS products, has been trying to develop new products by integrating technologies cultivated in the design and manufacture of lenses, stepping motors, power supply circuits with wireless technology!

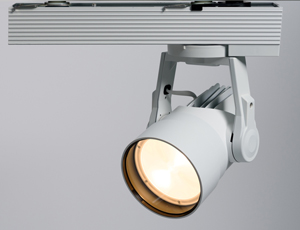

SALIOT appearance
- Point 1:
- An ultra-thin lens for LED lighting capable of automatically adjusting illumination has been developed by putting together multiple optical designs and incorporating a minute prism pattern into a lens, the integration of which has been introduced for the first time in the industry (Note *) This lens is the ultra-thin composite and high-efficiency lens, which has been developed through the combination of a Fresnel lens and a TIR (Total Internal Reflection) lens.
- Point 2:
- Through the combination of the lens and the motor, the lens can adjust the angle of light and light distribution angles ranging from 10° to 30°.
- Point 3:
- The development and implementation of proprietary software has enabled the lens to automatically manage and control a light distribution angle and brightness both horizontally and vertically with ease by smartphone or tablet.
Through the industry's first application (Note *) of Bluetooth Mesh control system, the lens can be installed in a wide variety of settings and is capable of controlling the direction of light and light distribution angles for up to 100 units of lighting devices simultaneously. - Point 4:
- The power source of "SALIOT" is designed based on Minebea's proprietary power supply circuit technologies and the substrates are assembled in-house at its own facilities.
- Point 5:
- It has been designed such that the device can be easily installed on or attached to the existing power supply rail.
(Note *: Based on the internal sources as of July 2015)
Prices
Please feel free to contact us at the contact details specified below.
Product Characteristics
| Lens size | [mm] | Φ100 | |||||
|---|---|---|---|---|---|---|---|
| Electricity consumption | [W] | 50 | |||||
| Voltage input | [V] | 100 ~ 277 | |||||
| Color temperature | [K] | 2,700 | 3,000 | 3,500 | 4,000 | 5,000 | |
| Color rendering index | typ. | Ra 95 | Ra 85 | ||||
| Luminaire light flux | [lm] | 3,000 (for reference only) | 4,000 (for reference only) | ||||
| Driving function [deg] |
Horizontal | 0 ~ 360 | |||||
| Vertical | 0 ~ 90 | ||||||
| Light distribution | 10 ~ 30 | ||||||
| Light control range | [%] | 1 ~ 100 | |||||
| Wireless control system | Bluetooth Mesh | ||||||
| Color (Appearance) | White | Black | |||||
| Weight | [kg] | 3.3 | |||||
Applications
Commercial facilities (shopping centers, apparel merchandising-related), show rooms (car dealers, etc.), a variety of museums, art museums, educational facilities, event spaces, hotels, etc.
To be installed in high ceilings and to control light distribution locations/places
Manufacturing facility
Ban Wa plant in Thailand
External views
Patents
6 patent applications have been filed in Japan and abroad.
Out of such applications, 2 have been patented (as of July 2015).
Future line-up of products to be introduced
- Spotlight type (Hanging (Suspended type)
- Universal downright type (Embedded type)
Related information
Minebea website: "Minebea Technology" "Ultra-thin lenses for LED lighting"
| Sales inquiries: | Lighting Device Business Unit Phone: +81-(0)3-6758-6728 FAX: +81-(0)3-6758-6941 |
|---|---|
| Media inquiries: | Corporate Communications Office Phone: +81-(0)3-6758-6703 FAX: +81-(0)3-6758-6718 |
